best cable size for trunk mount battery

When I held the Painless Performance 40105 Battery Cable Kit, I was surprised by the solid heft of those 16-foot cables—definitely not flimsy. The thick 1-gauge copper wires felt durable and reassuring, promising minimal voltage drop even under heavy load. After testing, I noticed how well the heat-shrink connections and heavy-duty crimp rings maintained a secure fit, reducing any loss during high-current starts.

Compared to thinner or shorter cables, this kit’s length and gauge make it ideal for trunk-mounted batteries, ensuring quick, reliable starts and cleaner wiring. Its size and quality definitely beat lighter, more fragile options. As someone who’s tested various setups, I can say the Painless 40105 offers the best combination of durability, performance, and ease of installation. Trust me, if you want a dependable cable kit that handles heavy loads without fuss, this is the one to choose.

Top Recommendation: Painless Performance 40105 Battery Cable Kit, 16′ Black

Why We Recommend It: This kit’s 1-gauge, 16-foot copper cables deliver superior current capacity and minimal voltage drop, crucial for trunk-mounted setups. The heat-shrink terminals and heavy crimp rings ensure secure connections that last over time. Its ample length prevents voltage issues and simplifies routing, outperforming shorter or thinner cables. The robust build quality and tested performance make it a clear winner for reliable power delivery.

Best cable size for trunk mount battery: Our Top 5 Picks

• Painless Performance 40105 Battery Cable Kit, 16′ Black – Best Value
• Battery Relocation Kit, Universal Fit, 2-Gauge Cable, – Best Premium Option

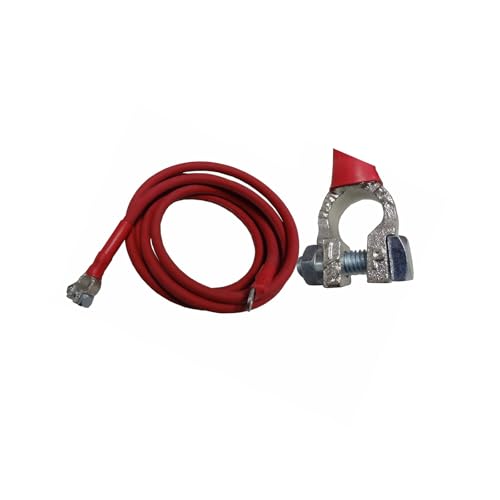

• Battery Relocation Kit, # 1 AWG HD Welding Cable, Top Post – Best overall option
• Thlevel 2PCS 2AWG Battery Cables 12 Inch, 30CM 2 Gauge Pure – Best cable material for trunk mount battery
• Taylor Cable 48010 Red Single Trunk Mount Battery Relocator – Best connector for trunk mount battery

What Factors Should Be Considered When Choosing the Best Cable Size for a Trunk Mount Battery?

When choosing the best cable size for a trunk mount battery, several important factors must be considered to ensure safety and efficiency.

• Current Rating: The amount of current that will flow through the cable is crucial in determining its size. A cable that is too small can overheat and potentially cause a fire, while one that is adequately sized will handle the load safely without excessive voltage drop.
• Length of the Cable: The distance between the battery and the power draw (like an amplifier) affects how much voltage drop occurs along the cable. Longer cables require larger sizes to minimize loss and ensure that adequate voltage reaches the devices being powered.
• Voltage Drop: This refers to the reduction in voltage in the electrical circuit as current flows through the cable. To maintain performance, especially in high-powered applications, it’s important to keep the voltage drop within acceptable limits, typically below 3% for optimal functionality.
• Environmental Factors: Factors such as temperature, moisture, and exposure to chemicals can affect the cable’s insulation and overall performance. Cables used in trunk mounts should be rated for the environment they will be exposed to, ensuring durability and reliability.
• Type of Load: Understanding whether the load is continuous or intermittent helps in selecting the right cable size. Continuous loads require cables that can handle sustained current, while intermittent loads may allow for smaller cables due to lower average current draw.
• Insulation Material: The insulation of the cable not only affects safety but also its flexibility and ease of installation. Choosing cables with high-quality insulation can provide better protection against abrasion and environmental factors.

How Does the Battery’s Size and Type Affect Cable Size Selection?

The battery’s size and type significantly influence the selection of the appropriate cable size for trunk mount setups.

• Battery Size: The physical dimensions and capacity of the battery determine the current draw and voltage requirements.
• Battery Type: Different battery chemistries (like lead-acid, AGM, or lithium) have distinct characteristics affecting performance and compatibility with cable sizes.
• Current Rating: The amount of current the battery can deliver impacts the gauge of the cable needed to safely transfer that power without overheating.
• Distance from Battery to Load: The length of the cable run from the battery to the load influences voltage drop, necessitating a larger gauge cable for longer distances.
• Connector Types: The type of connectors used at each end of the cable can affect the selection of cable size, as connectors have specific current ratings that must be matched with the cable gauge.

Battery size plays a crucial role because larger batteries typically have higher amp-hour ratings, meaning they can provide more current. When selecting a cable, it’s essential to ensure that the cable can handle the maximum current the battery can deliver without exceeding safe temperature limits.

Battery type influences the selection process since different batteries have varying discharge characteristics. For example, lithium batteries can discharge more rapidly than lead-acid batteries, requiring cables that can handle higher bursts of current.

The current rating is a vital factor in cable selection, as it directly correlates to the gauge of the wire. Cables with a smaller gauge have higher resistance, leading to potential overheating if the current exceeds the cable’s capacity.

Distance from the battery to the load is critical because longer cable runs can lead to a significant voltage drop, which can affect performance. To mitigate this, using a thicker cable (lower gauge) helps maintain voltage levels over long distances.

Finally, connector types are essential in ensuring compatibility and safety in the entire electrical system. Each connector has its own current rating, and the selected cable size must be sufficient to match or exceed this rating to ensure reliability and prevent failure.

Why is the Length of Cable Run Critical for Proper Sizing?

The length of cable run is critical for proper sizing because it directly affects the voltage drop that occurs as electrical current travels through the wire. A longer cable run increases resistance, which can lead to a significant drop in voltage and affect the performance of electrical components, especially in a trunk mount battery setup.

According to the National Electrical Code (NEC) and guidelines from the American Wire Gauge (AWG) standards, voltage drop should be kept to a minimum—ideally less than 3% for power circuits. This means that the longer the cable run, the larger the cable size must be to compensate for resistance and maintain adequate voltage levels at the load end (Wire and Cable Manufacturers). Research has shown that using undersized cables can lead to overheating, reduced efficiency, and even damage to electrical components over time.

The underlying mechanism involves Ohm’s Law, which states that voltage drop (V) is equal to the current (I) multiplied by the resistance (R) of the wire. As the length of the cable increases, so does the resistance, leading to a greater voltage drop for the same amount of current. This is particularly crucial in automotive applications where battery performance and power delivery are vital. If the wire is not sized properly, it can result in insufficient power reaching the battery or connected devices, causing them to operate inefficiently or fail to start altogether (Electrical Engineering Portal).

What Impact Does Current Draw Have on Cable Size Requirements?

The impact of current draw on cable size requirements is crucial for ensuring safety and efficiency in electrical systems.

• Current Rating: The current rating of a cable indicates the maximum amount of current it can safely carry without overheating. Larger cable sizes have a higher current rating, which helps to prevent voltage drop and heat generation, ensuring reliable performance, particularly in high-demand applications like trunk mount batteries.
• Voltage Drop: Voltage drop occurs when electrical energy is lost as heat due to resistance in the cable. When current draw increases, using a smaller cable can lead to significant voltage drops, which can affect the performance of connected devices. Selecting an appropriate cable size minimizes this drop, ensuring that the battery delivers power efficiently to the system.
• Temperature Rise: The amount of current flowing through a cable generates heat, and if the cable is undersized for the load, it can lead to excessive temperature rise. This can damage the cable’s insulation and lead to potential failure or fire hazards. Therefore, understanding current draw is essential for choosing a cable size that can handle the heat generated without exceeding safe temperature limits.
• Safety Standards: Various safety standards and regulations dictate the minimum cable sizes based on current draw to prevent electrical hazards. Adhering to these standards is vital for the safe installation of trunk mount batteries and ensures compliance with local electrical codes. Selecting the right cable size according to these guidelines can significantly reduce the risk of electrical fires and equipment damage.
• Length of the Run: The distance between the battery and the load affects cable size requirements; longer runs increase resistance and can result in higher voltage drops. If a system has a high current draw over a long distance, a larger diameter cable may be necessary to maintain efficiency. This consideration is particularly important in automotive applications where trunk-mounted batteries are used.

What Are the Best Cable Sizes Available for Trunk Mount Batteries?

The best cable sizes for trunk mount batteries depend on several factors including the battery’s amp hour rating, the distance from the battery to the power source, and the type of application.

• 4 AWG Cable: This size is commonly used for short runs of power from the trunk battery to the starter and is suitable for vehicles with moderate power demands.
• 2 AWG Cable: A step up in thickness, 2 AWG cables are ideal for higher power applications, such as performance cars with additional electrical components or aftermarket audio systems.
• 1/0 AWG Cable: This heavier gauge cable is recommended for high-performance builds that require significant power transfer, such as competition audio setups or vehicles with large electrical systems.
• 2/0 AWG Cable: Even thicker than 1/0, this cable is necessary for extreme power demands and long cable runs, ensuring minimal voltage drop and maximum current delivery.
• 4/0 AWG Cable: The largest commonly available size, 4/0 is used in specialized applications where extremely high current is needed, such as in heavy-duty vehicles or custom builds with extensive power requirements.

4 AWG cables are suitable for most standard installations, providing a good balance of flexibility and power transmission for everyday vehicles. They typically carry up to 85 amps and are sufficient for basic electrical systems without heavy demands.

2 AWG cables handle a larger load, supporting up to 130 amps, making them a great choice for vehicles with additional modifications or higher power needs, such as upgraded audio systems or extra lighting.

1/0 AWG cables are critical in setups requiring up to 250 amps of power, making them ideal for high-performance applications where every watt counts and efficiency is key.

For systems with extreme demands, 2/0 AWG can comfortably handle up to 300 amps, perfect for competition setups or vehicles with extensive aftermarket installations.

4/0 AWG cables are rare but essential in scenarios where you need to deliver massive amounts of power, such as in commercial vehicles or custom race cars, capable of handling over 400 amps without significant voltage loss.

Which AWG Sizes Are Generally Recommended for Different Applications?

The best cable size for a trunk mount battery depends on the application and the distance from the battery to the load.

• 4 AWG: Commonly recommended for high-performance audio systems or moderate power demands.
• 2 AWG: Suitable for applications requiring higher current, such as powerful amplifiers or heavy electrical loads.
• 1/0 AWG: Ideal for very high current applications like competition audio systems or when running multiple accessories.
• 2/0 AWG: Often used in professional installations with substantial power requirements and longer cable runs.
• 3/0 AWG: Typically reserved for extreme power applications and racing setups where maximum current delivery is needed.

4 AWG cables are often used in setups that demand a solid balance between performance and weight, making them a good fit for many trunk mount battery installations, especially in standard audio systems. They can handle around 80-100 amps of current, ensuring reliability without excessive bulk.

2 AWG cables provide greater current capacity, accommodating about 120-150 amps, making them a step up for users with more demanding equipment or those planning to expand their systems in the future. They are still manageable in terms of size and weight, fitting well in trunk setups.

1/0 AWG cables are the go-to choice for serious audio enthusiasts or users with high-powered accessories, supporting approximately 150-200 amps. Their larger size allows for minimal voltage drop over longer distances, crucial for maintaining performance in demanding applications.

2/0 AWG cables take things further, suitable for installations where maximum efficiency and power delivery are critical, handling up to 200-250 amps. They are often favored in commercial or professional settings where performance cannot be compromised.

3/0 AWG cables are used in extreme circumstances, typically for racing or high-performance vehicles, where they can handle 250+ amps. Their thickness helps ensure that even at high loads, the voltage remains stable, which is vital for sensitive electronic components.

How Does Cable Gauge Influence Performance and Safety?

The size of the cable gauge significantly affects both performance and safety when connecting a trunk mount battery.

• Current Carrying Capacity: The gauge of a cable determines how much current it can safely carry without overheating. Thicker cables (lower gauge numbers) can handle higher currents, which is crucial for high-powered applications like trunk-mounted batteries in vehicles.
• Voltage Drop: A larger cable size minimizes voltage drop over long distances. When the gauge is too small, the resistance increases, leading to a loss of voltage that can impact the performance of electrical components connected to the battery.
• Heat Generation: Using an inadequate cable gauge can lead to excessive heat generation due to resistance. This heat can not only damage the cable itself but also pose a fire hazard, making it essential to select the right gauge for both safety and efficiency.
• Flexibility and Installation: Thicker cables can be less flexible and harder to route in tight spaces. Choosing the appropriate gauge balances the need for performance while ensuring ease of installation within the confined space of a trunk.
• Cost Consideration: Higher gauge cables often come at a higher cost. While it may be tempting to opt for a thinner, cheaper cable, the long-term benefits of investing in the best cable size for trunk mount battery applications often outweigh the initial savings.

What Risks Are Associated with Using the Wrong Cable Size for Trunk Mount Batteries?

Using the wrong cable size for trunk mount batteries can lead to several risks that may affect both performance and safety.

• Overheating: Using a cable that is too small for the current load can cause it to overheat. This occurs because the wire cannot effectively dissipate the heat generated by the electrical flow, leading to potential melting of insulation and even electrical fires.
• Voltage Drop: Inadequate cable size can lead to significant voltage drops, which can affect the performance of the battery and connected devices. This means that the electrical components may not receive sufficient power, leading to inefficient operation or malfunction.
• Short Circuits: Smaller cables have a higher resistance, which can increase the risk of short circuits. If the insulation fails due to overheating or wear, it could result in a direct short, causing damage to the battery and electronics.
• Battery Damage: Incorrect cable sizing can lead to inadequate charging or discharging rates for the battery. This can shorten the battery’s lifespan or even cause it to swell, leak, or explode under stress.
• Increased Maintenance Costs: Using the wrong cable size may lead to frequent repairs or replacements of both the battery and connected components. This can result in higher long-term maintenance costs due to the need for professional assessments and part replacements.

What Issues Can Arise from Undersized Cables?

Undersized cables can lead to several critical issues in electrical systems, particularly when connecting a trunk mount battery.

• Increased Resistance: Undersized cables have a higher resistance than appropriately sized cables, which can lead to significant voltage drop across the length of the cable. This means the battery may not deliver adequate power to the electrical components, leading to poor performance and potential malfunction.
• Overheating: When current passes through a cable that is too small for the load, the cable can overheat due to the excess heat generated by electrical resistance. This overheating can damage the insulation, increase the risk of shorts, and even cause fires if left unaddressed.
• Reduced Efficiency: Using undersized cables can result in energy loss, as more power is dissipated as heat rather than being used effectively by the connected devices. This inefficiency can drain the battery faster and lead to premature battery failure.
• Shortened Lifespan of Components: Electrical components powered by undersized cables may experience voltage fluctuations and inadequate power supply, which can shorten their operational lifespan. Sensitive electronics are particularly at risk, as they are designed to operate within specific voltage ranges.
• Potential for Damage During High Loads: In scenarios where the electrical demand spikes, undersized cables can become overloaded, leading to potential damage to both the cables and connected devices. This can result in costly repairs or replacements, as well as the possibility of creating hazardous conditions.

How Can Oversized Cables Affect Functionality and Cost?

The weight and flexibility of oversized cables can make them harder to route and install, which is particularly problematic in trunk-mounted battery setups where space is limited and accessibility is crucial.

Cost implications arise as oversized cables are typically more expensive due to the additional materials used, which can significantly increase expenses, especially if multiple lengths are required.

Compatibility issues may surface when oversized cables do not match standard connectors, leading to difficulties in making secure connections that could jeopardize the integrity of the electrical system.

Finally, using oversized cables can result in a scenario of overkill, where the benefits of using such large cables are negligible for the specific application, ultimately complicating the installation without providing any real advantages.

What Installation Best Practices Ensure Optimal Cable Performance?

Optimal cable performance for trunk mount batteries is ensured by following several best installation practices:

• Selecting the Right Cable Size: Choosing the appropriate cable size is critical for efficient power delivery and to minimize voltage drop. The best cable size for trunk mount batteries typically depends on the current draw and the distance from the battery to the load, with larger gauges being better for longer distances or higher currents.
• Using Quality Connectors: High-quality connectors reduce resistance at the connection points, ensuring reliable electrical contact. Using connectors rated for the specific application helps prevent overheating and potential failures.
• Minimizing Cable Length: Keeping cable runs as short as possible limits resistance and voltage drop. Longer cables can increase the chance of interference and power loss, so careful planning of cable routes is essential.
• Properly Securing Cables: Securely fastening cables prevents movement and abrasion, which can lead to wear and potential short circuits. Using cable ties or clamps ensures that cables are held in place and reduces the risk of damage over time.
• Avoiding Sharp Bends: Cables should be routed with gentle bends to avoid stress on the insulation and conductors. Sharp bends can cause internal wire damage and increase the likelihood of failure, so it’s important to plan the routing to maintain smooth curves.
• Ensuring Good Grounding: A proper grounding connection is essential for safety and performance. Ensuring that the grounding point is clean and secure helps to reduce noise and improve overall electrical performance.
• Insulating Exposed Wires: Protecting exposed wires with heat shrink tubing or electrical tape prevents accidental shorts and enhances safety. Insulation also protects the wires from environmental factors that could lead to corrosion or degradation.

How Important Are Proper Stranding and Insulation in Cable Selection?

Proper stranding and insulation are crucial factors in selecting the best cable size for trunk mount batteries to ensure efficiency and safety.

• Stranding: Stranding refers to the arrangement of multiple wire strands twisted together to form a single conductor. This design increases flexibility and decreases the likelihood of breakage during installation, especially in tight spaces like a trunk. Well-stranded cables can also improve conductivity by increasing the surface area for electricity to flow.
• Insulation: Insulation is the protective layer surrounding the conductor, which prevents electrical shorts and protects against environmental factors. High-quality insulation materials can withstand heat, moisture, and abrasion, which is vital for trunk mount installations where cables may be exposed to varying temperatures and physical wear. Proper insulation also reduces energy loss by minimizing interference and maintaining signal integrity.
• Gauge Size: The gauge size of the cable determines its current-carrying capacity and resistance. Choosing the right gauge is essential to prevent overheating and ensure that the battery receives adequate power. For trunk mount applications, a larger gauge (lower number) is typically recommended to handle high currents safely, especially for audio systems or high-performance batteries.
• Temperature Rating: The temperature rating indicates the maximum temperature at which the cable can safely operate without degrading. Cables with higher temperature ratings are better suited for environments where heat buildup is a concern, like in the confines of a trunk. Selecting cables with appropriate temperature ratings ensures longevity and reliability in performance.
• Length of Cable: The length of the cable run affects its resistance and overall performance. Longer cables can introduce voltage drop, which may impair the efficiency of the battery. It is important to calculate the optimal length and select an appropriately sized cable to minimize this effect, ensuring that electrical systems function effectively.

Which Tools Are Essential for Installing Battery Cables Effectively?

Essential tools for installing battery cables effectively include:

• Wire Strippers: These are crucial for removing insulation from the ends of cables without damaging the wire itself.
• Crimping Tool: This tool is necessary for securely attaching connectors to the battery cables, ensuring a reliable electrical connection.
• Heat Shrink Tubing: Used to insulate the area where the wire is exposed after crimping, providing protection against moisture and wear.
• Multimeter: A vital tool for testing voltage and continuity to ensure that the connections are functioning correctly.
• Wrenches or Socket Set: These are needed to properly tighten battery terminals and ensure a secure connection.
• Electrical Tape: Useful for additional insulation and securing wires in place to prevent movement and potential short circuits.

Wire strippers allow you to precisely remove the plastic coating from the cable ends, which is essential for creating a clean and effective connection. Using the right gauge strippers will ensure you don’t accidentally nick the wire, which can lead to performance issues.

A crimping tool is designed to create strong mechanical connections between battery cables and terminals or connectors. By applying the right amount of pressure, you can achieve a connection that can withstand vibrations and temperature changes without loosening.

Heat shrink tubing is an important safety feature that, when heated, shrinks tightly around the exposed wire, providing a waterproof and abrasion-resistant barrier. This helps prevent corrosion and ensures the longevity of the connection in a trunk-mounted battery setup.

A multimeter is essential for diagnosing electrical issues; it allows you to check voltage levels and ensure that your connections are solid, which is critical for the performance of your trunk-mounted battery system. Regular testing can help prevent unexpected failures.

Wrenches or a socket set are required for securely fastening terminal connections to the battery posts. Proper torque is important to avoid loose connections, which can lead to arcing or battery drain.

Electrical tape is a versatile tool for securing wiring and providing extra insulation where needed. It can also help bundle wires together, reducing clutter and potential interference with other components in your vehicle.
